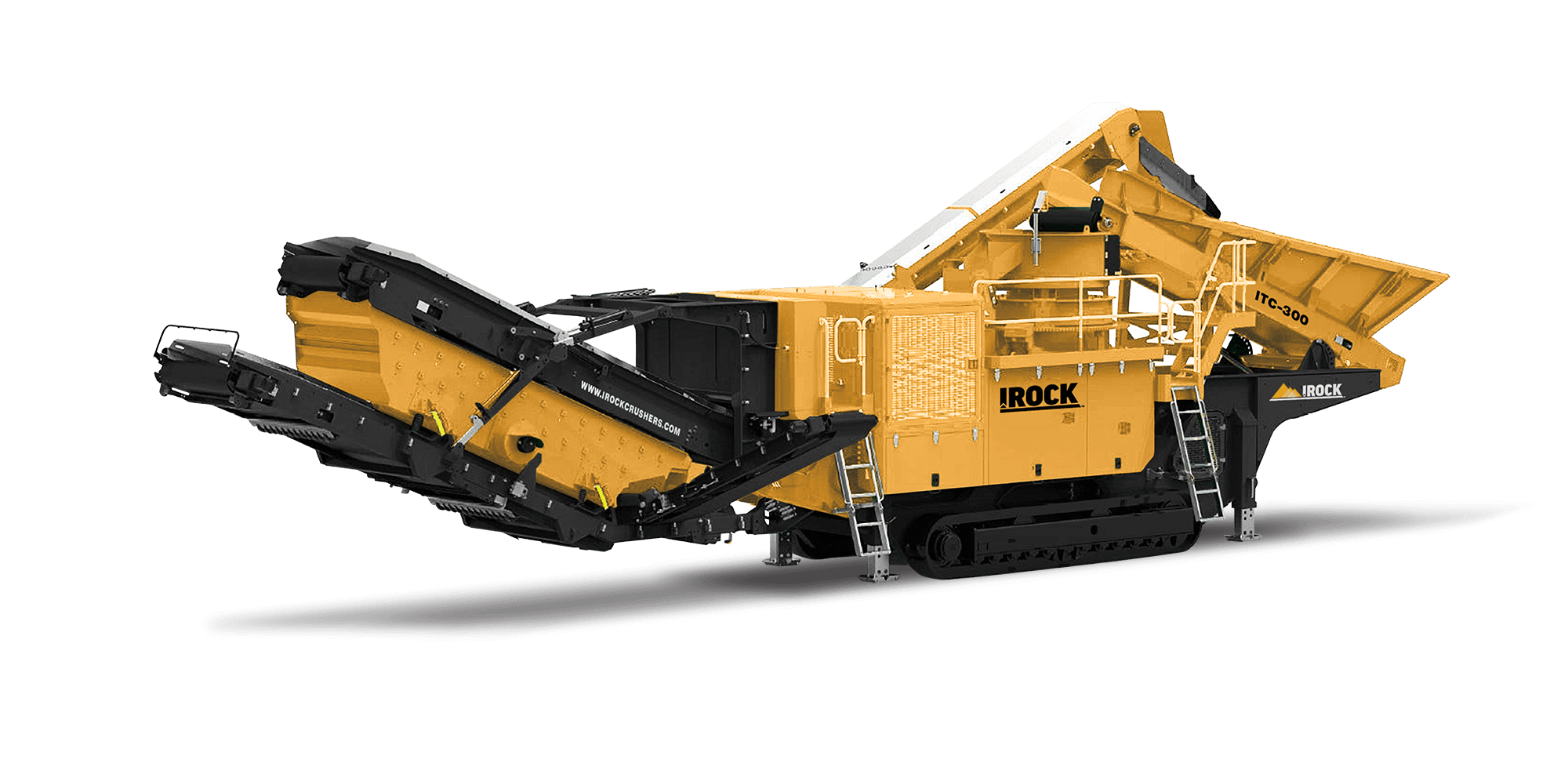

ITC-200 Mobile Cone Crusher Features
"Steel hopper with adjustable feedrate via control panel, remote control or fully automatic regulation with feedback from the cone"
"Large gap between crusher discharge and the main conveyor feedboot prevents bottlenecking."
Reversible magnet enables material separation from the source material.
Specifications
Engine
CAT® C9.3B 350 HP
Feed Opening
38” (914mm)
Feeder Belt Width
42” (1050mm)
Hopper Volume
6.2m3 (8.1yd3)
Crusher Drive
Direct Drive
CSS Adjustment
Hydraulic
Transport Height
11’ - 1.8” (3.4m)
Transport Length
54’ - 4.7” (16.6m)
Transport Width
9’ - 1.4” (2.80m)
Weight
89,221 lb (40,470kg) (est.)
Stockpile Height - Main Conveyor
14’ - 0.5” (4281mm)
Main Conveyor Belt Width
48” (1200mm)
ITC-200 - Mobile Cone Crusher
ITC-200CC - Mobile Cone Crusher
ITC-200
Engine
350 Hp (261 kW) - 360 Hp (268 kW)
Feed Opening
38” (914mm)
Feeder Belt Width
42” (1050mm)
Hopper Volume
6.2m3 (8.1yd3)
Crusher Drive
Direct Drive
CSS Adjustment
Hydraulic
Transport Height
11’ - 2” (3.4m)
Transport Length
60’ - 9” (18.52m)
Transport Width
11’ - 5” (3.49m)
Weight
114,640 lb (52,000kg) (est.)
Stockpile Height - Main Conveyor
13’ - 10.8” (4281mm)
Main Conveyor Belt Width
48” (1200mm)
ITC-200 - Mobile Cone Crusher
ITC-200CC - Mobile Cone Crusher
ITC-200CC
