Con Pile

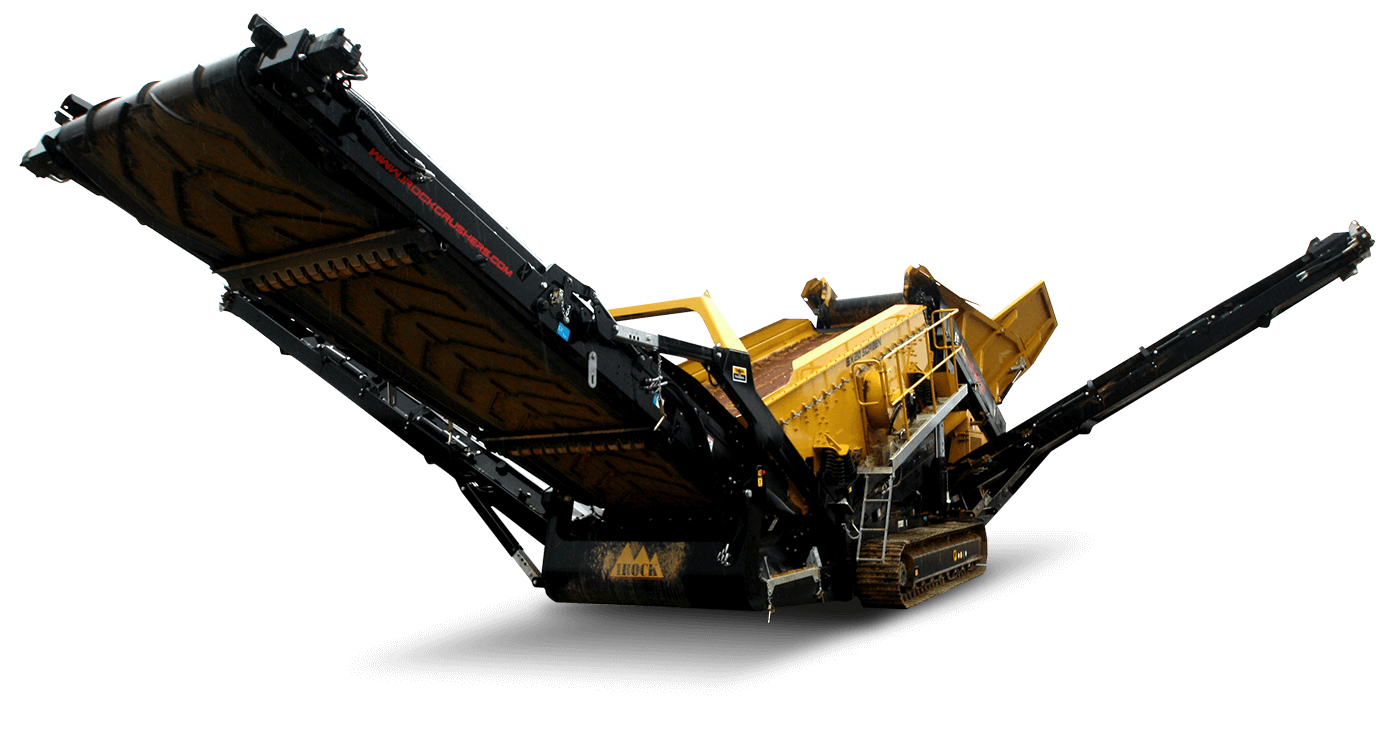

TS-620 – Mobile Scalping Screen

IROCK’s largest screening plant, the TS-620 mobile scalping screen, is known for its high output in heavy-duty scalping applications. The TS-620 tracked unit features a robust overall design and can process up to 900 TPH.

ENGINE
CAT® C7.1 225HP
HOPPER CAPACITY
11.7 cubic yards
STOCKPILE HEIGHT
12 feet, 3 inches
TOP DECK
20 feet by 6 feet

TS-620 – Mobile Scalping Screen Features

An 11.7-cubic-yard hopper features the highest capacity available in this class of screeners.

Optional top deck bofar bars, top deck punch plate, heavy-duty top finger deck, and bottom finger deck prolong screen and crusher life in rugged applications. An optional apron feeder can be substituted for the belt feeder.

The two-deck design offers 234 square feet of screening area and the ability to sort up to three different product sizes.

Stacking conveyors feature discharge heights up to 16-feet, allowing for the production of more material before having to move the finished product. A 63-inch-wide discharge conveyor, the widest in the industry, reduces material build-up at the screen’s discharge point. It also features an impact bed, which extends the life of the conveyor.

Specifications

  • ENGINE

    CAT® C7.1 225HP

  • HOPPER CAPACITY

    11.7 cubic yards

  • STOCKPILE HEIGHT

    12 feet, 3 inches

  • TOP DECK

    20 feet by 6 feet

  • BOTTOM DECK

    19 feet by 6 feet

  • DISCHARGE CONVEYOR

    63 inches wide with impact bed

  • WEIGHT

    97,020 pounds

  • TS-620 - Mobile Scalping Screen
