Con Pile

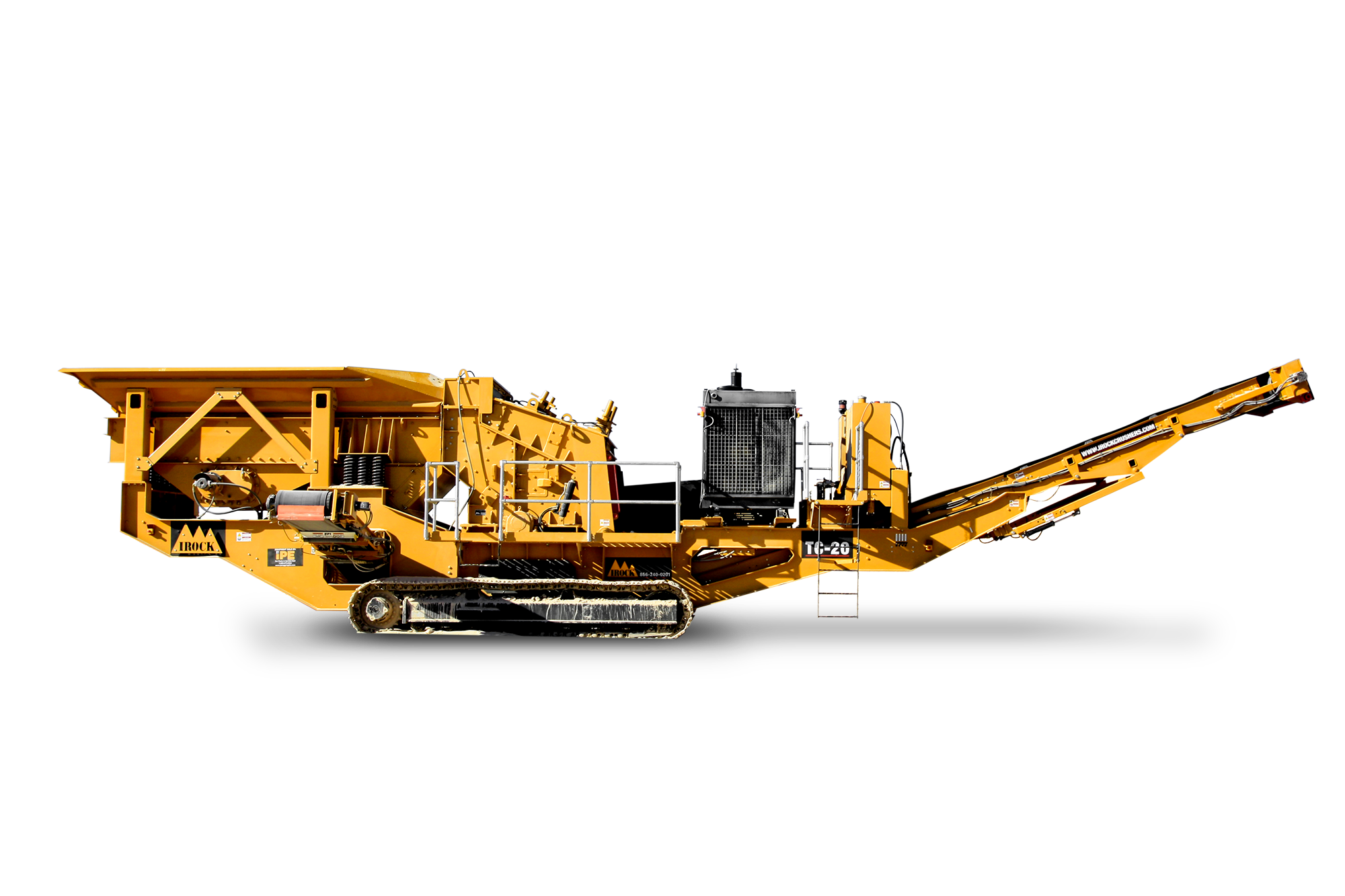

TC-20 Mobile Impact Crusher (HSI)

The TC-20 track horizontal shaft impact (HSI) crusher has the largest hopper in its class and is built for big loads and even bigger production. IROCK’s TC-20 mobile unit produces a uniform, cubical product that will increase your bottom line.

ENGINE
CAT® C13B 456 HP
STOCKPILING HEIGHT
10 feet, 11 inches
ROTOR SIZE
40 inches by 56 inches
FEEDER SIZE
52 inches by 16 feet

TC-20 Mobile Impact Crusher (HSI) Features

A 15-cubic-yard fixed Hardox® hopper is paired with a 52-inch by 16-foot vibrating grizzly feeder with a larger impact crusher inlet for increased production rates. The TC-20’s feeder is the longest among tracked crushers and allows operators to feed material with a large wheel loader.

The standard ROCK BOX reduces wear on the discharge point by forming crushed material into a natural rock shelf to serve as a liner.

A 48-inch-wide discharge conveyor can stockpile up to a maximum height of 10 feet, 11 inches. Operators can hydraulically lower or raise the conveyor to feed stockpiling conveyors and make maintenance easier.

A standard wireless remote control offers standard full-plant functions and two-speed tracking for easy maneuverability around a job site or onto a trailer.

Specifications

  • ENGINE

    CAT® C13B 456 HP

  • STOCKPILING HEIGHT

    10 feet, 11 inches

  • FEEDER SIZE

    52 inches by 16 feet

  • ROTOR SIZE

    40 inches by 56 inches

  • WEIGHT

    98,500 pounds

  • TC-20 Mobile Impact Crusher (HSI)
