Con Pile

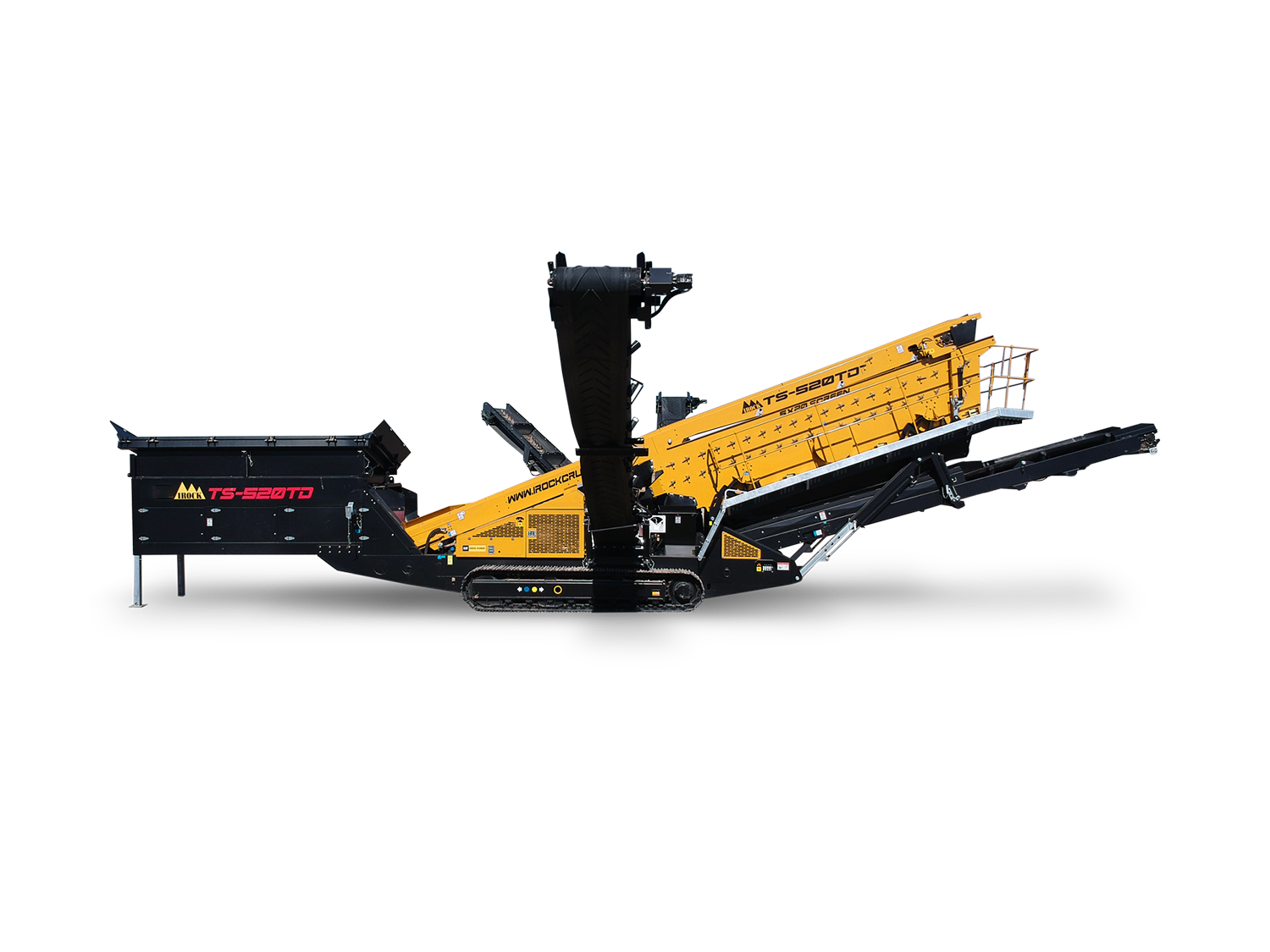

TS-520 – Mobile Finishing Screen

The TS-520 mobile finishing screen challenges industry performance standards and leads the competition with the most advanced 20-by-5-foot tracked vibratory screen plant in production today. The TS-520 can also be fitted with a rinser kit.

ENGINE
CAT® C4.4 130HP
HOPPER CAPACITY
13 cubic yards
WEIGHT
79,366 pounds

TS-520 – Mobile Finishing Screen Features

Ideal for customers who need four finished products, the TS-520TD comes with a third deck.

The adjustable screenbox angles allow adaptability to a wide range of material applications, including quarrying and mining and well as sand, gravel, coal, topsoil and woodchip screening.

The hydraulic screenbox linkage system provides maximum accessibility for screen changes and maintains optimal screen coverage at varying screenbox angles.

Ideal for customers who need four finished products, the TS-520TD comes with a third deck. The three-deck auxiliary conveyor attaches directly to the machine for efficient one-unit transport.

The 48-inch main feed hopper belt enables high-capacity screening, so you can take on large jobs with optimal efficiency.

The 15-foot hopper grid opening works with large loading shovels for even greater productivity.

Specifications

    TS-520

  • ENGINE

    CAT® C4.4 130HP

  • HOPPER CAPACITY

    13 cubic yards

  • WEIGHT

    79,366 pounds

  • TS-520 - Mobile Scalping Screen

    TS-520TD

  • ENGINE

    130-HP CAT® C4.4 (Tier 4F)

  • HOPPER CAPACITY

    13 cubic yards

  • WEIGHT

    80,468 pounds

  • TS-520 - Mobile Scalping Screen
