Con Pile

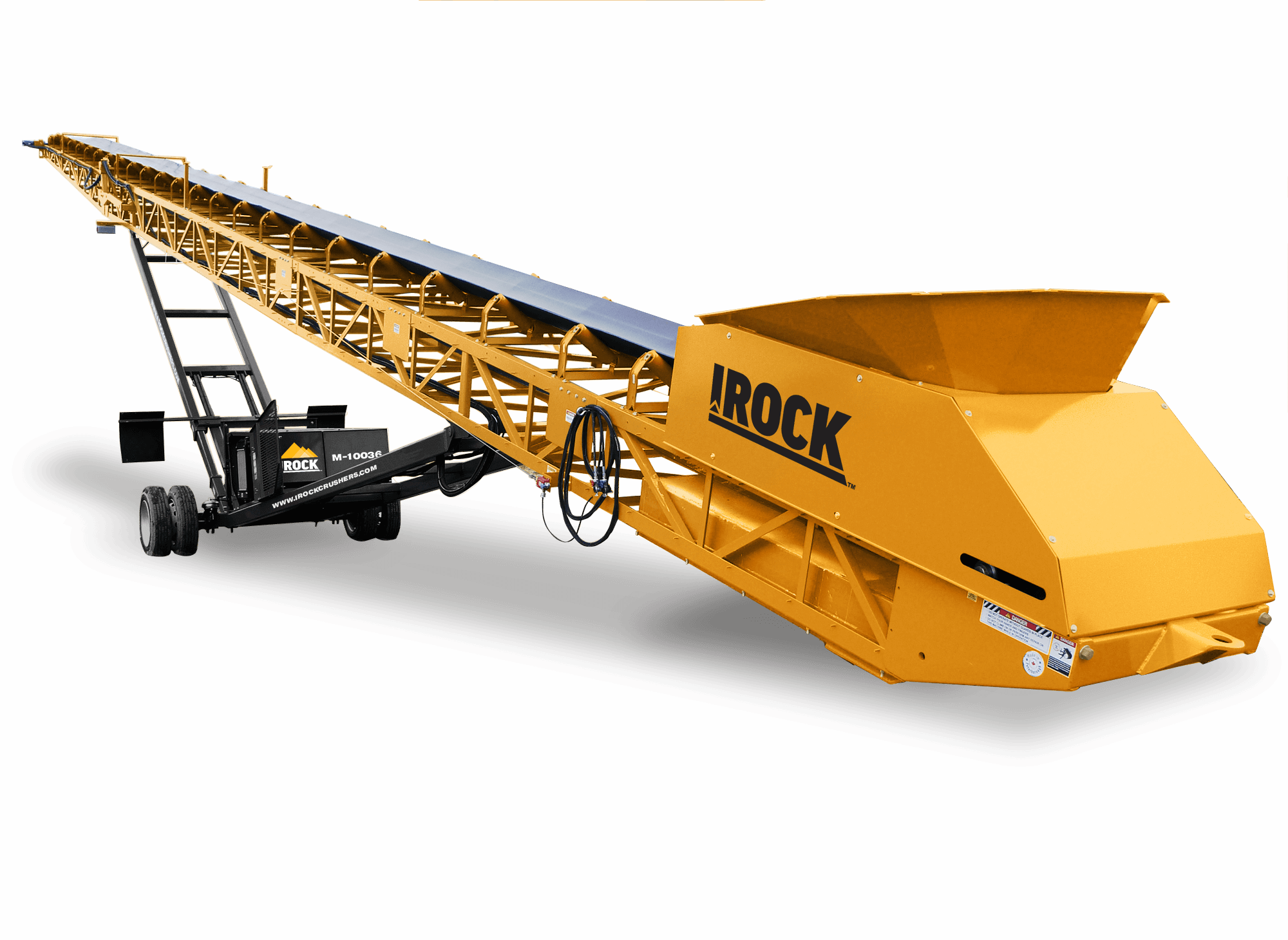

M-10036 Series Portable Conveyor

Designed for maximum stockpile volume, the M-10036 series portable conveyor boasts a 100-foot conveyor that takes stockpiling capabilities to new heights.

ENGINE
CAT® C3.4L 74 HP
STOCKPILING HEIGHT
41 feet
CONVEYOR LENGTH
100 feet
CONVEYOR WIDTH
10 feet, 11 inches

M-10036 Series Portable Conveyor Features

An enclosed 30-HP electric motor powers the M-10036E, expanding the versatility and convenience of the 10036 wheeled conveyor series. But the M-10036E does not scrimp on power: It can reach production capacities as high as 500 TPH.

A road-towable design, standard hydraulic V-Bin doors and powerful electric motor — the M-10036EV is the epitome of mobility and productivity. Capable of moving 800 TPH, the M-10036EV is built to handle high-capacity jobs day after day.

Hydraulic V-Bin doors and an adjustable hopper make the M-10036VB an industry leader in efficiency and ease of use. Powered by a hardy CAT 3.4B engine, the M-10036VB moves as much as 800 TPH.



A hydraulic folding system and efficient five-minute on-site setup ensure these conveyors are road towable as well as convenient to not only transport but to get up and running quickly.

The M-10036 series is safe to operate with engine safety shutdown systems and full safety guarding on pinch points, providing peace of mind on large-crew projects.

Ground-level grease points on every pulley provide easy maintenance.

Optional features such as the magnet material separator, hopper extensions, and Martin® scraper help maximize efficiency.

Specifications

    M-10036

  • ENGINE

    CAT® C3.4L 74 HP

  • STOCKPILING HEIGHT

    41 feet

  • CONVEYOR LENGTH

    100 feet

  • CONVEYOR WIDTH

    10 feet, 11 inches

  • WEIGHT

    25,000 pounds

  • M-10036 - Series Portable Conveyor

    M-10036E

  • ENGINE

    30-HP electric

  • STOCKPILING HEIGHT

    41 feet

  • CONVEYOR LENGTH

    100 feet

  • CONVEYOR WIDTH

    10 feet, 11 inches

  • WEIGHT

    23,000 pounds

  • M-10036 - Series Portable Conveyor

    M-10036EV

  • ENGINE

    50-HP electric

  • STOCKPILING HEIGHT

    42 feet, 9 inches

  • CONVEYOR LENGTH

    100 feet

  • CONVEYOR WIDTH

    10 feet, 11 inches

  • WEIGHT

    26,000 pounds

  • M-10036 - Series Portable Conveyor

    M-10036VB

  • ENGINE

    100-HP CAT 3.4B (Tier 4F)

  • STOCKPILING HEIGHT

    42 feet, 9 inches

  • CONVEYOR LENGTH

    100 feet

  • CONVEYOR WIDTH

    10 feet, 11 inches

  • WEIGHT

    26,000 pounds

  • M-10036 - Series Portable Conveyor
