TS-409 – Mobile Scalping Screen Features
High Energy 4’ x 9’ screenbox delivers the most aggressive screening action in its class.
Discharging oversize material at 11’ 1” (3.38m), the 42” (1050mm) wide 3-ply belt allows for efficient stockpiling.
Direct feed 5.5 yd3 lined hopper equipped with a 48” heavy duty 4 ply belt for heavy duty applications.
Specifications
Engine
CAT® C4.4 130HP
Transport Height
10’ 6” (3.20m)
Transport Length
31’ 9” (9.68m)
Transport Width
8’ 4” (2.50m)
Weight - Base Model
33,951 lbs (15,400kg)
Stockpile Height - Tail Conveyor
11’ 1” (3.38m)
Stockpile Height - Mid Product Conveyor
11’ 8`` (3.56m)
Stockpile Height - Fines Product Conveyor
11’ 8`` (3.56m)
Screenbox Dimensions
4’x9’ (1.22m x 2.75m)

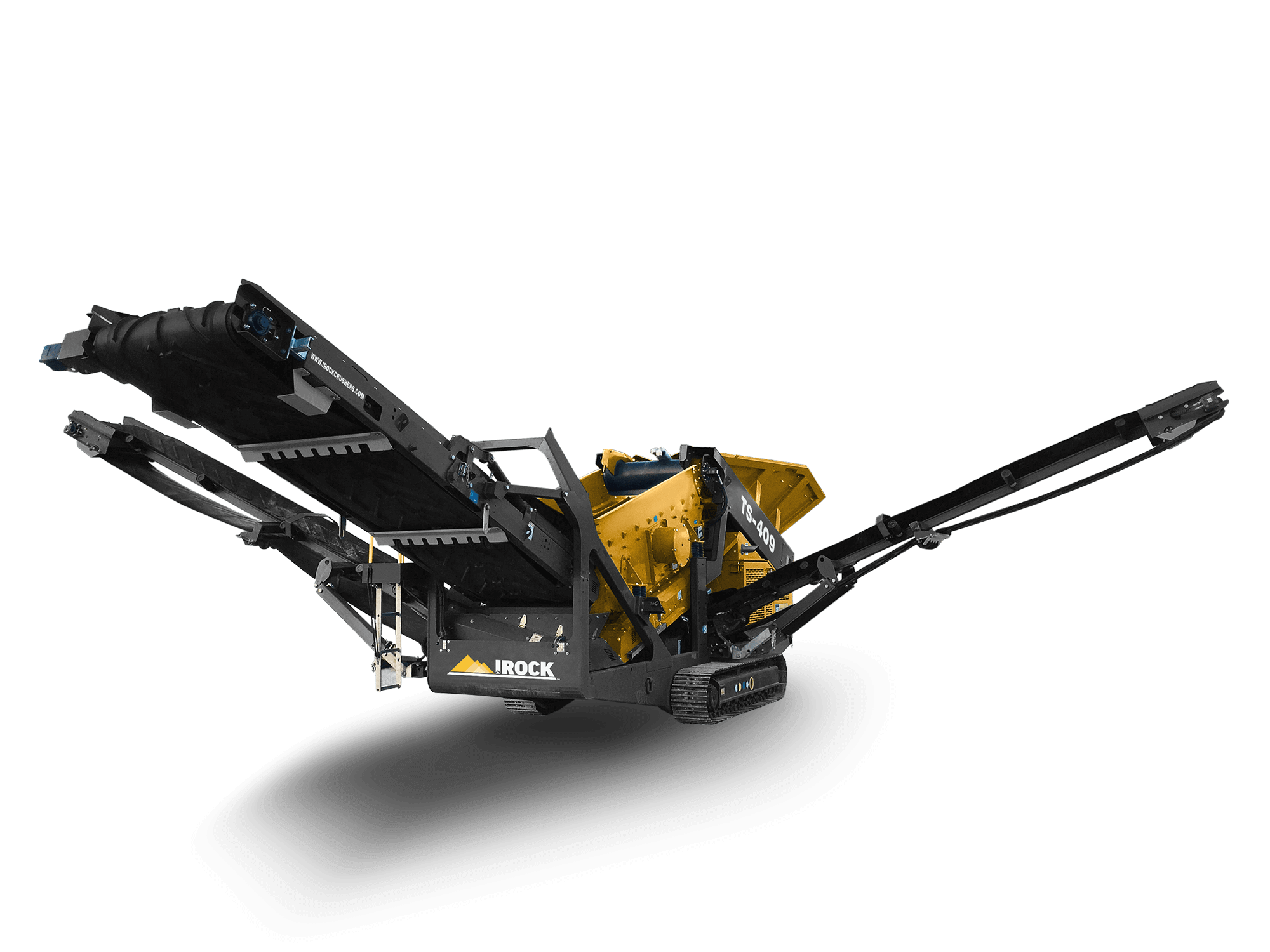

TS-409 Mobile Scalping Screen
